6010 Series Charger / Adapter / LED Driver Test System

Prodigit is a manufacturer of high quality power test equipment. With more than 20 years of experience in the electronic power testing industry. We are able to provide cost effective solutions for your requirements. Custom configurations are also available. Please contact us to discuss your power testing requirements.

click to enlarge

Description

6010 Charger / Adapter / LED Driver Automatic Test System is able to meet multi-types power products test requirements，and its multi-U.U.T test simultaneously capability can significantly enhance the production line throughput. It also possess multi-modular combination that includes low noise analog AC source with Triac to simulate output, four sets precision power meter, two or four sets ripple noise / timing measurement module, four sets OVP DC power supply, 3310F series & 3332F/3336F Electronic Load module and unique design 3340F series for LED power driver output test.

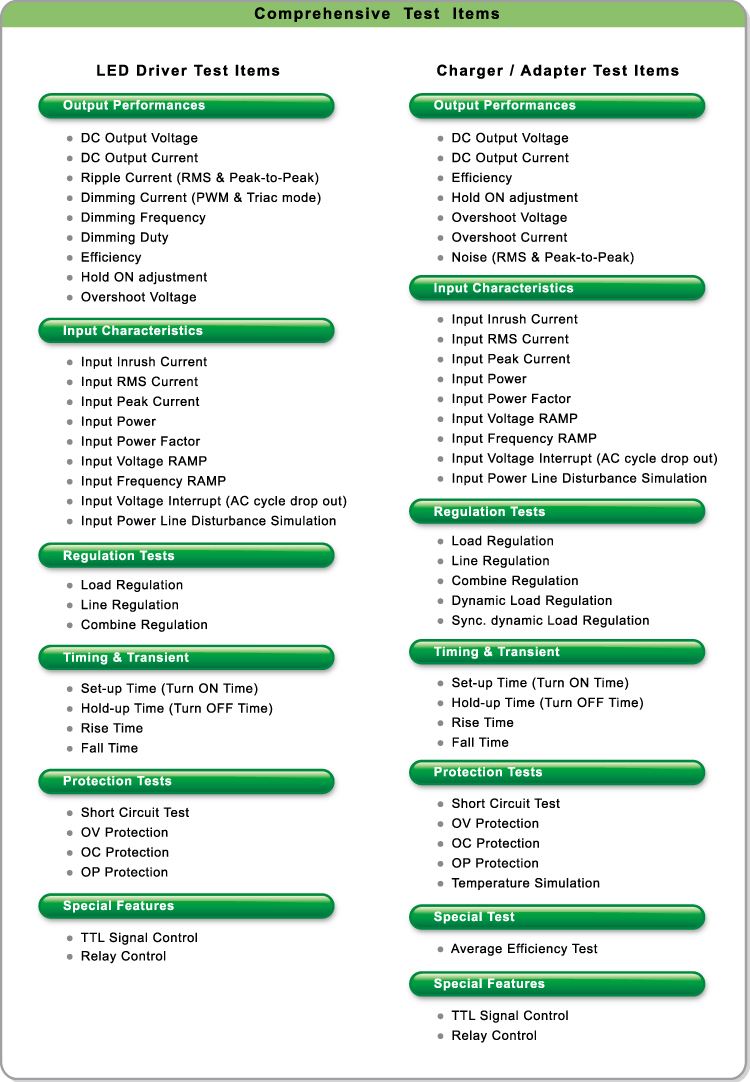

Test items are included with five categories Power Test Features :
1.Output Performances -- the general performance of U.U.T
2.Input Characteristics -- the input power parameters of U.U.T
3.Regulation Tests -- the regulation of U.U.T when the change of the input power and load
4.Timing & Transient -- measuring the timing and transient of Turn ON, Turn OFF
5.Protection Tests -- trigger and test the protection circuit of U.U.T.

Click to Enlarge
