36250A Series Compact High Power DC Electronic Load
600V, 210A, 50KW

click to enlarge

Click here to view 36250A Series Introduction

Feature

With parallel function maximum power up to 320KW
Maximum up to 8 units master / slave parallel control
5 digit V/A/W Meter
High-speed measurement and communication transmission
Large LCD Display、setting values can be adjusted by rotary knob or push button
Voltage、Current and Watt value can be displayed simultaneously
Capable for Power Factor Correction (PFC) Test. (for 600V,1000V models)
OCP、OPP test function automatically
Power ON status can be set
CC, CR, CV, CP, CC+CV, CP+CV, Dynamic and Short operation mode
SHORT time setting
Protections against I,W,°C and over-voltage alert
Voltage meter display the polarity positive（”＋”）or negative（”－”）is selectable
Short, OCCP and OCDP function test for BMS protection board is provided (option)
Option：Emergency Stop and Analog Control are available
Optional Interface : GPIB、RS232、USB、LAN
0.7V @ 1000A is on Static condition, and the starting voltage must be greater than 5V, if on Dynamic condition that is 5V @ 1000A
New waveform generator plug in model 9923 adds user programmable battery dischargecurrent waveform simulation to Prodigit DC Loads

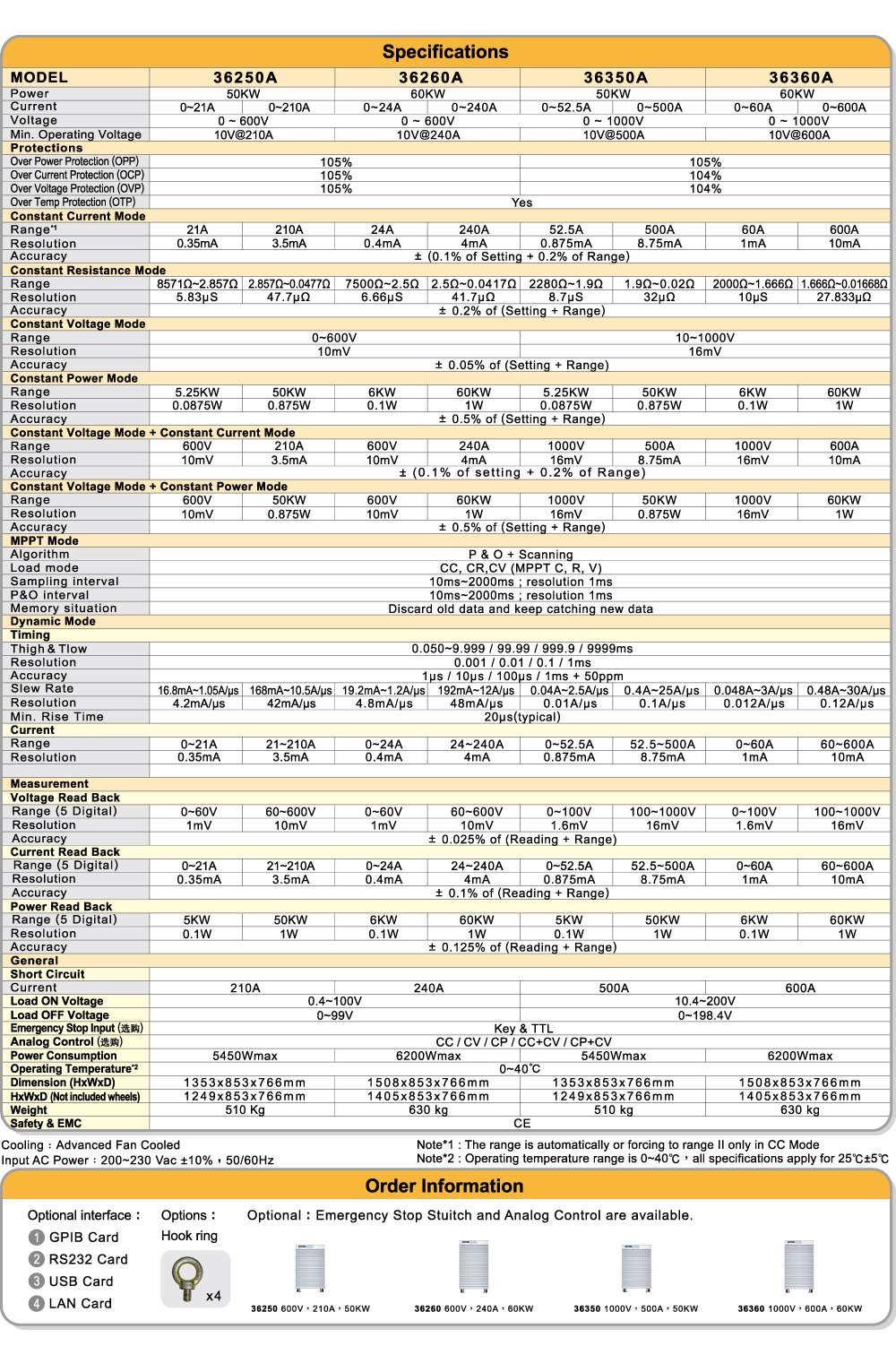

36250A	36260A	36350A	36360A
600V, 210A, 50KW	600V, 240A, 60KW	1000V, 500A, 50KW	1000V, 600A, 60KW


36250A Series Compact High Power DC Electronic Load 600V, 210A, 50KW 36260A Series Compact High Power DC Electronic Load 600V, 240A, 60KW 36350A Series Compact High Power DC Electronic Load 1000V, 500A, 50KW 36360A Series Compact High Power DC Electronic Load 1000V, 600A, 60KW
